Casting Alloys
Aluminum · Zinc · Magnesium · Copper alloys
Choose a material family, then confirm the grade, service conditions and production configuration.
Explore alloy selection →

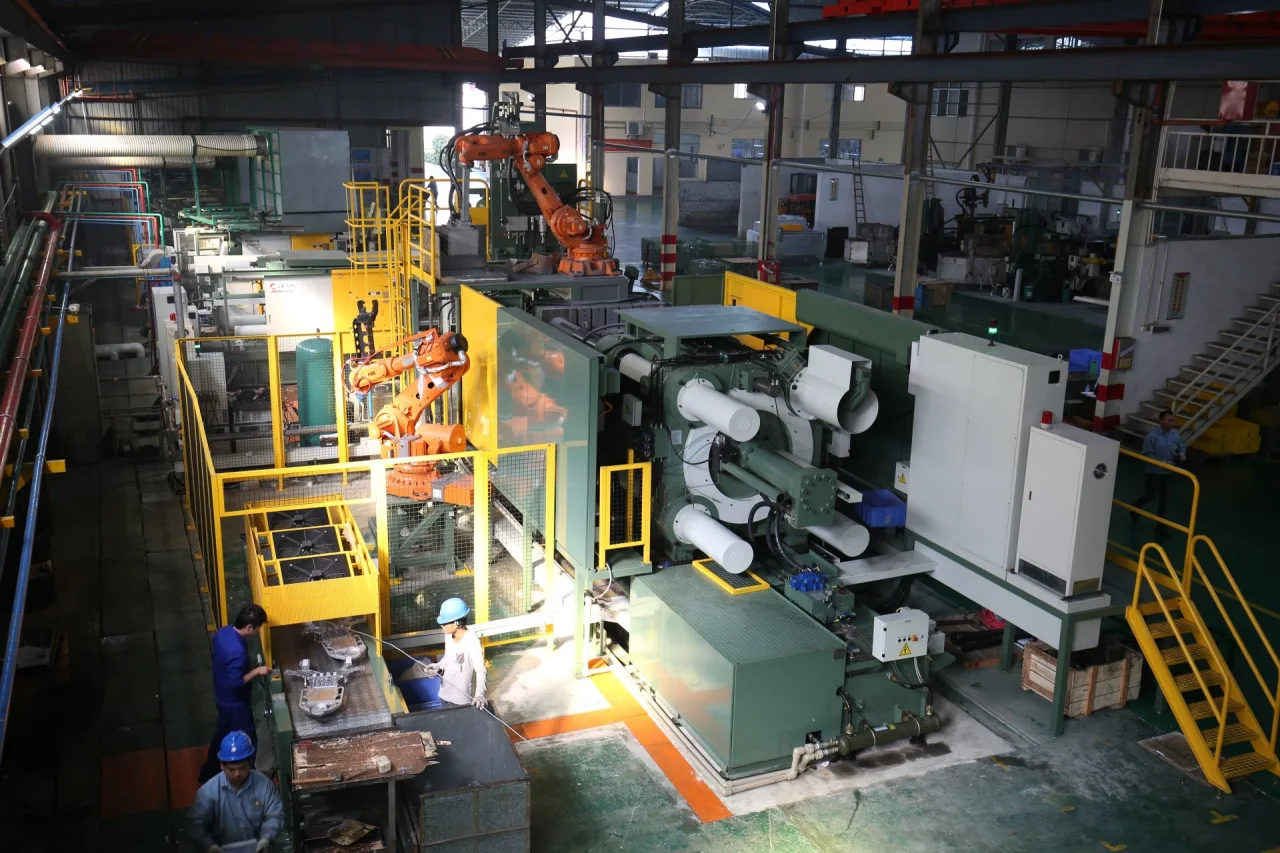

Production die casting
Custom Die Casting Services
Die casting for aluminum, zinc, magnesium and copper alloy components, with tooling, secondary operations and inspection defined for each project.
Capacity at a glance
Die Casting Capabilities
Match your component to the alloy, machine capacity and finishing route before planning production.
- Alloy families
- Aluminum · Zinc · Magnesium · Copper alloys
- Machine clamping force
- 180–2,500 metric ton-force (tf); 11 machines
- Aluminum net part weight
- Routine trimmed casting weight: 0.05–10 kg. Castings of 15 kg have been produced for specific large-part projects.
- Zinc net part weight
- Routine trimmed casting weight: 0.005–2 kg. Stable production of 1 g parts has been achieved in specific hot-chamber projects.
- Secondary operations
- CNC machining · Surface finishing · Product assembly
- Precision & acceptance
- Aluminum as-cast controlled features: typically ±0.05–±0.15 mm; general structural dimensions: ±0.10–±0.30 mm. CNC critical dimensions: ±0.02–±0.05 mm, with fixture and process review for ±0.02 mm. Parting-line dimensions are assessed separately.
- Main walls & local thin-wall review
- Typical main walls: aluminum 1.5–4.5 mm; zinc 0.8–2.0 mm. A local 0.7 mm target is considered mainly for Zamak zinc with short flow paths and requires tooling trials.
- Surface roughness by stage
- Typical as-cast surfaces: Ra 3.2–6.3 μm. Ra 0.8 μm is assessed for specified mating or sealing surfaces on aluminum or zinc after CNC finish milling, finish turning or polishing, with process and measurement conditions agreed.
Routine weights refer to single-part castings after gate and runner removal. The 15 kg aluminum and 1 g zinc examples are specific-project experience; each new part requires its own drawing, tooling and process review. Clamping force does not establish part weight, shot weight or the usable part envelope. Magnesium and copper alloy weight ranges require separate review.
View equipment, size & weight details →
Plan your component
Die Casting Requirements
Explore the four areas that shape tooling, production and acceptance for your part.
Size & Weight Limits
Routine weights: aluminum 0.05–10 kg · Zinc 0.005–2 kg
Trimmed casting weights for routine work. Large-part and micro-part experience is reviewed separately; part envelope, projected area and shot requirements are assessed for the drawing.
Explore size & weight →Tolerances & Quality
As cast · Sized · CNC machined
Define each critical feature by its delivery state, datum, tolerance and agreed inspection method.
Explore tolerances & quality →Specialized Capabilities
Thin walls · Complex geometry · Pressure-tight parts
Identify local walls, sealing conditions and internal-quality requirements for a project-specific review.
Explore specialized requirements →
Parts & applications
Representative Die-Cast Parts
Examples of component geometry and manufacturing routes. Material, tolerances and inspection requirements are confirmed for your project.

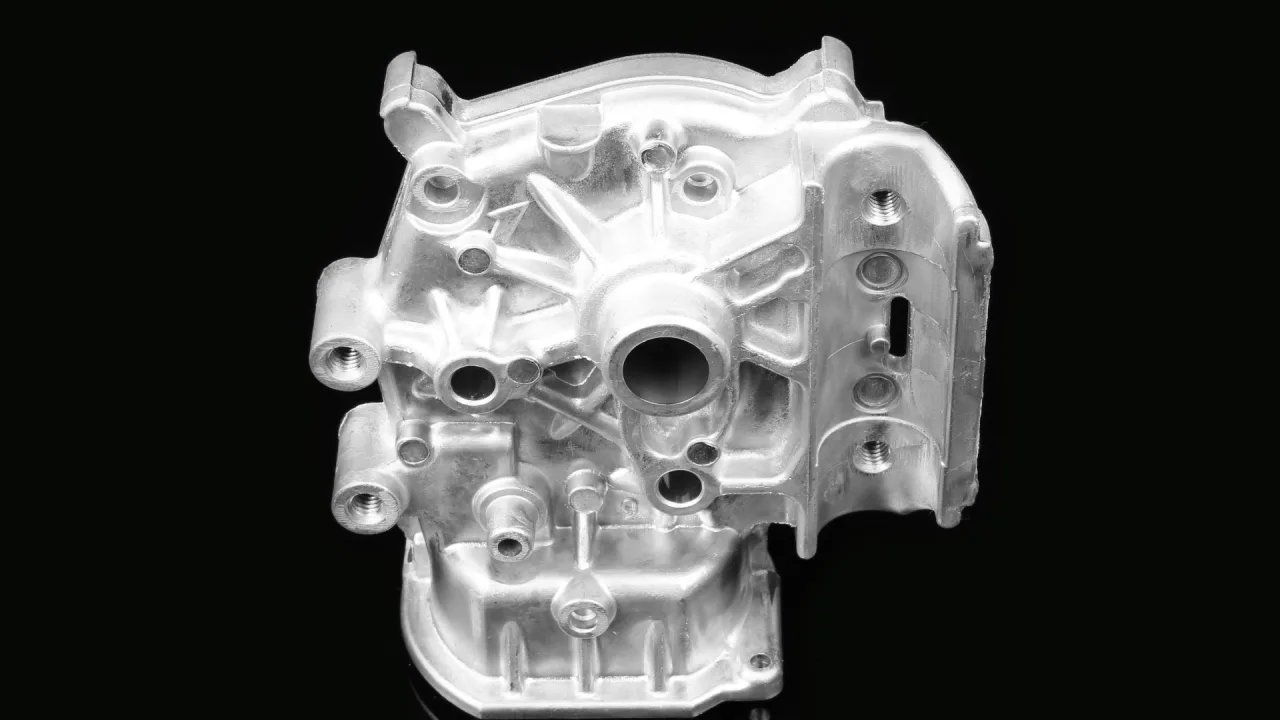

Representative Aluminum Motor Housing
A representative aluminum housing form showing the relationship between cast geometry, interfaces and secondary machining.
- Material
- Aluminum die-casting alloy
- Manufacturing route
- High-pressure die casting + secondary CNC machining

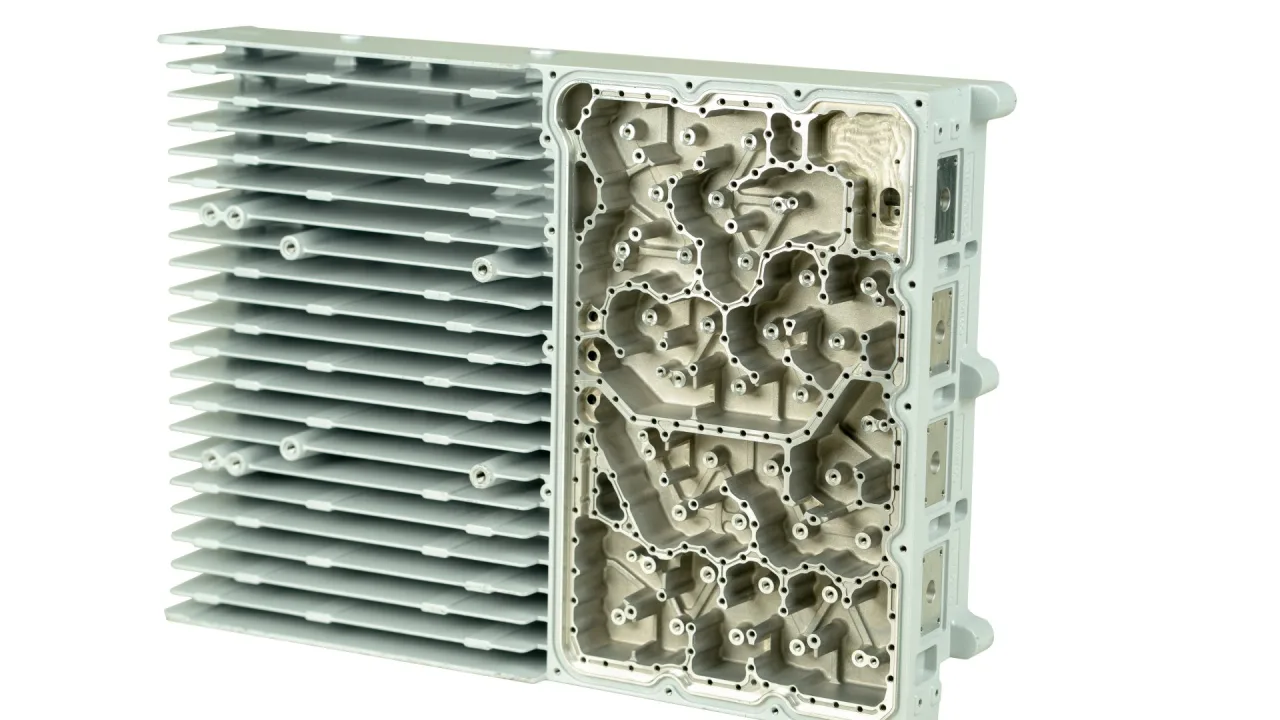

Representative Finned Electronics Housing
A representative finned enclosure form showing thermal features, mounting geometry, protected surfaces and machined interfaces.
- Material
- Aluminum die-casting alloy
- Manufacturing route
- High-pressure die casting + secondary CNC machining
From drawing to delivery
Die Casting Manufacturing Workflow
One agreed route connects tooling, casting, secondary operations and the records needed to release your finished part.
- 01
Drawing & DFM
Review geometry, alloy, volume and critical features. Agree drawing revisions and open decisions before tool release.
Tooling & DFM → - 02

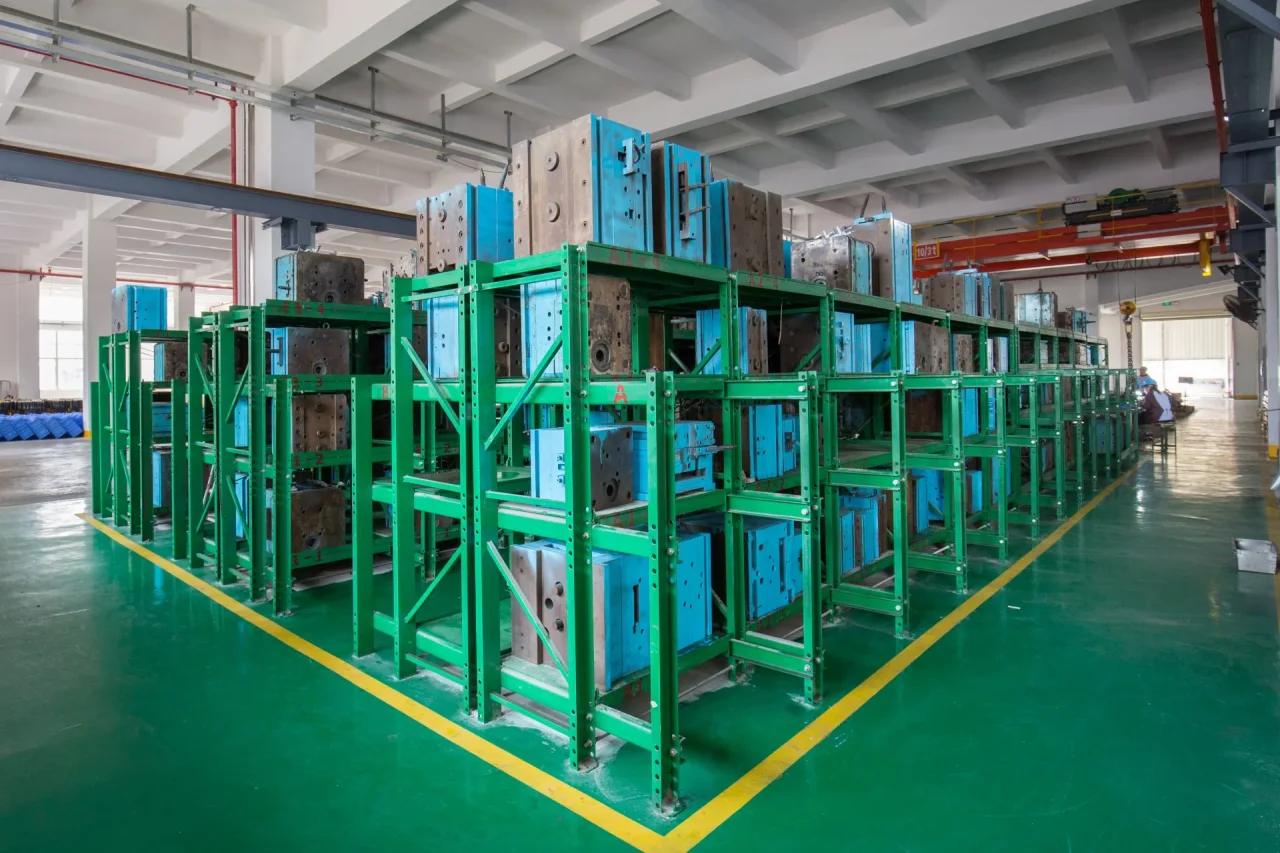

Tooling & samples
Manufacture and trial the die. Review sample measurements, corrections and approval before production.
Tool trials & approval → - 03
Die casting
Prepare the alloy and die, cast the component, then trim and deburr against the agreed production requirements.
High-pressure die casting → - 04
Secondary operations
Machine functional features and specify finishes, protected surfaces and assembly interfaces.
Secondary CNC machining → - 05
Inspection & delivery
Complete the agreed checks, reports, identification and packaging before shipment.
Quality & inspection →
Production & verification
Manufacturing and Quality Control
Plan material checks, functional dimensions and finish requirements alongside the production route.
- Material & traceability
- Agree the alloy specification, material records and part or lot identification required for the order.
- Dimensions & interfaces
- Define datums, critical dimensions and delivery state. Select measurement methods and sampling against the drawing.
- Appearance & functional checks
- Confirm finish limits and cosmetic surfaces. For leakage or internal-quality requirements, agree test conditions, acceptance criteria and reporting.
Engineering resources
Die Casting Engineering Guides
Practical guidance for design decisions, casting risks and the cost of the delivered part.
Die Casting DFM Checklist Before Tooling Release
A drawing-based checklist for closing geometry, tooling, machining, finishing, inspection, and approval questions before die manufacture begins.
Read engineering guide →Die Casting Defects: Causes, Prevention, and Inspection Strategy
A practical framework for classifying casting defects, investigating interacting causes, selecting controls, and matching inspection to functional risk.
Read engineering guide →What Drives Die Casting Cost? A Total-Cost Review
A practical guide to tooling, material, geometry, process, machining, finishing, inspection, assembly, and change risks that shape total die casting cost.
Read engineering guide →Project Planning Notes
Manufacturing requirements
Plan the complete casting and finishing sequence.
Review part design, tooling, casting, secondary operations and inspection against the requirements of the delivered component.
- Part and alloy selection
- Demand, design stability, wall transitions, draft, ribs, bosses, inserts, service environment, and governing alloy specification.
- Filling and ejection
- Parting line, gates, runners, overflows, venting, thermal balance, ejection, trimming, flash, and tool access.
- Functional machining
- Machining allowances and stable casting locators for bores, threads, sealing faces, bearing seats and mounting datums.
- Risk and acceptance
- Porosity-sensitive zones, leakage, distortion, cosmetic limits, finish, inspection method, sampling, and traceability.
Production Release Workflow
- Engineering review
- Tooling
- Melt & die preparation
- Injection & cooling
- Ejection & trim
- CNC machining
- Finishing & assembly
- Inspection & delivery
Ready for a manufacturing review?
Review Your Die Casting Project
Send your drawing and tell us what the finished component needs to do. Include the alloy, batch or annual quantity, critical features and finish requirements.
Review My Drawing →STEP, IGES, PDF and other technical formats. Files are stored privately; contact us before uploading if your project requires an NDA.
What happens next
- 01
Receive a reference
Each accepted RFQ receives a reference number.
- 02
Review the requirements
Engineering reviews the drawing, material, quantity and proposed manufacturing route.
- 03
Agree the next step
We provide clarification questions, next steps or a quotation based on the project requirements.
